Kidde TruSense Smoke Alarm AC Hardwired with Voice Notifications 3050-VAS10 3050-VAS10
Kidde TruSense Smoke Alarm AC Hardwired with Voice Notifications 3050-VAS10
3050-VAS10
TruSense Advanced Smoke Detection Technology
-
3x the sensing intelligence*
-
Fast & accurate detection of various fire types*
-
Reduces cooking nuisance alarms
-
Anti-static construction reduces nuisance alarms from dust
-
Meets latest industry standards
*Versus UL 217 6th Standards
Description

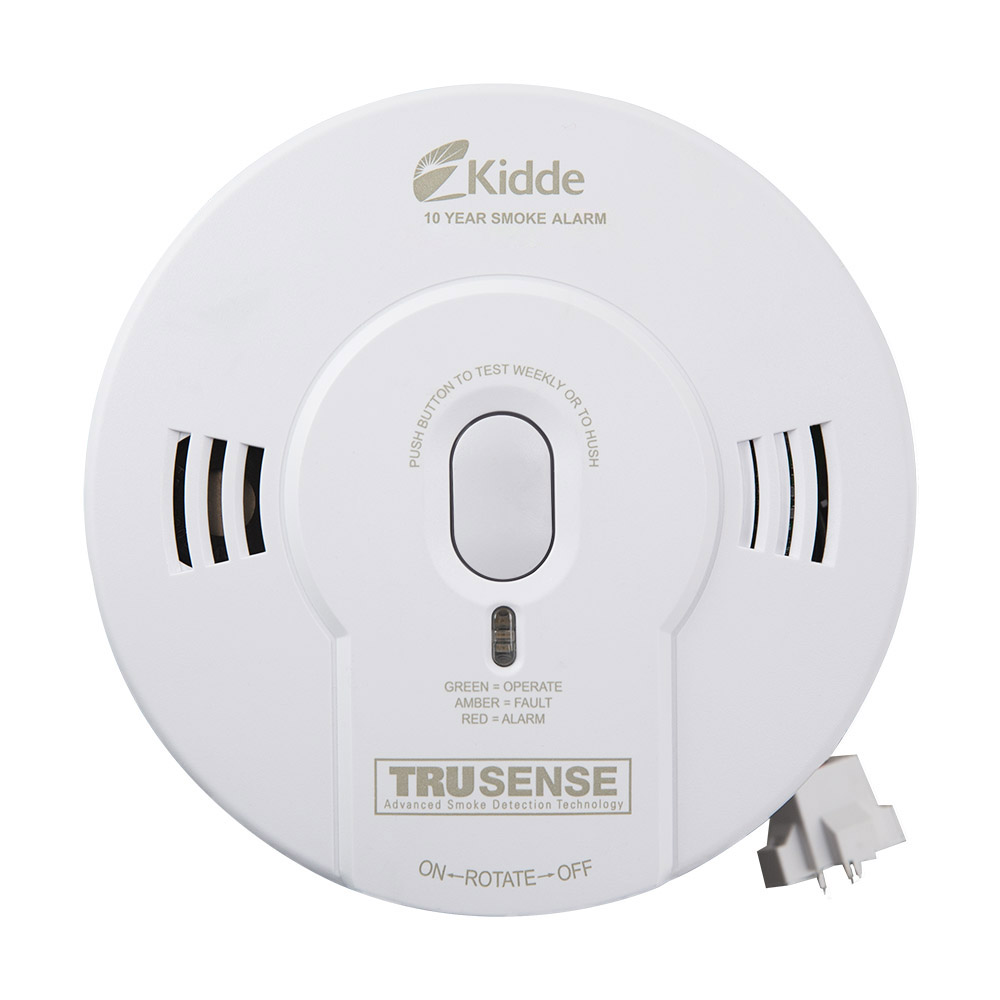

The 3050-VAS10 is an AC/DC powered smoke alarm that features the new Kidde TruSense multi-criteria optical smoke sensor, voice notifications, and a ten year sealed backup battery designed to last the life of the alarm.
Why TruSense?
More synthetic materials are being used in homes, and those react differently in fires. Smoke alarm standards have changed, requiring flaming and smoldering polyurethane foam fire tests as well as a "nuisance test" to avoid false alarms from minor cooking mishaps. TruSense technology uses a multi-criteria optical sensor (MCO) with advanced programming to identify real fires from false alarms, such as smoke from cooking sources. The system analyzes smoke particles in the air to determine if the source poses a threat. This advanced sensor technology helps Kidde smoke alarms meet the latest UL 217 detection requirements.
-
TruSense Multi-Criteria Optical Sensor: Detects various fire types and reduces cooking nuisance alarms.
-
Voice Notifications: Unit verbally announces alerts such as “Fire!” and “Low Battery,” which helps the user better understand current status of the unit.
-
120V AC/DC Hardwired with 10 Year Battery Backup: Never change a battery!
-
Ten-Year Sealed Battery: Eliminates late night battery chirps and annual battery replacement costs.
-
Improved AC Power Supply: Meets new UL 217 power surge requirements.
-
Loud, 85 Decibel Alarm: Alerts of danger.
-
Three Color LEDs: Receive visual notifications of alarm status:
-
Green: Alarm is operational
-
Amber: Low battery / unit error
-
Red: Smoke detected
-
Test / Hush® Button: Tests alarm circuitry and activates Hush feature to temporarily silence nuisance alarms for up to 10 minutes. End of Unit Life and Low Battery alerts can also be silenced for the first 7 days.
-
End of Unit Life Warning: Alerts user the alarm is in need of replacement.
-
10-Year Limited Warranty
Technical Specifications
| Model: | 3050-VAS10 |
| Power Source: | 120VAC 60Hz, 3V Sealed Lithium Battery Backup |
| Sensor: | Multi-Criteria Optical |
| Audio Alarm: | 85dB at 10ft |
| Temperature Range: | 40˚F (4.4˚C) to 100˚F (37.8˚C) |
| Humidity Range: | Up to 95% relative humidity (RH), non-condensing |
| Size: | 5.8” in diameter x 1.86” depth |
| Weight: | 0.6 lb |
| Interconnects: | Up to 24 Kidde devices |
| Warranty: | 10 year (including battery) |
Architectural and Engineering Specifications
The alarm can be installed on any standard single gang electrical box, up to a 4” octagon junction box, following the UL/Manufacturer’s approved placement guidelines. The electrical connection (to the alarm) shall be made with a plug-in connector.
The 3050-VAS10 shall include a test button that will simulate fire conditions and cause the unit to go into alarm. This sequence tests the unit’s electronics to ensure proper operation. A maximum of 24 Kidde devices can be interconnected in a multiple station arrangement. The interconnect system must not exceed the NFPA (National Fire Protection Association) limit of 18 initiating devices, of which 12 can be smoke alarms. This alarm is not designed to be interconnected with other manufacturer's products, unless otherwise specified.
The alarm shall have two methods of warning for danger: a piezoelectric horn that is rated at 85 decibels at 10 feet and a voice warning that identifies the danger. In a Smoke incident, the horn will sound in the repetitive manner – three (3) beeps, a pause, three (3) beeps, a pause. In between, the unit will announce “Fire!”
The alarm shall include an End of Unit Life Alert, where ten years after initial power up the unit shall chirp two times every 30 seconds to indicate the alarm needs to be replaced. A voice warning will provide a “Replace Alarm” message. This alert can be temporarily silenced in 24 hour increments for seven days.
The unit shall at a minimum meet the requirements of UL 217 8th Edition, NFPA 72, The State of California Fire Marshall, NFPA 101 (One and two family dwellings), Federal Housing Authority (FHA), Housing and Urban Development (HUD). The alarm shall be UL Listed and shall include a 10-year manufacturer’s limited warranty.
Industry experts recommend specific locations for smoke alarms, such as every level and sleeping area of the dwelling. See user guide for more location information.
For maximum detection of the various types of fires that can occur within the home, including fast flaming and slow smoldering, it is recommended that multi-criteria smoke alarms be installed. This model meets the latest residential smoke alarm standards, which includes enhanced resistance to nuisance alarms from cooking.
