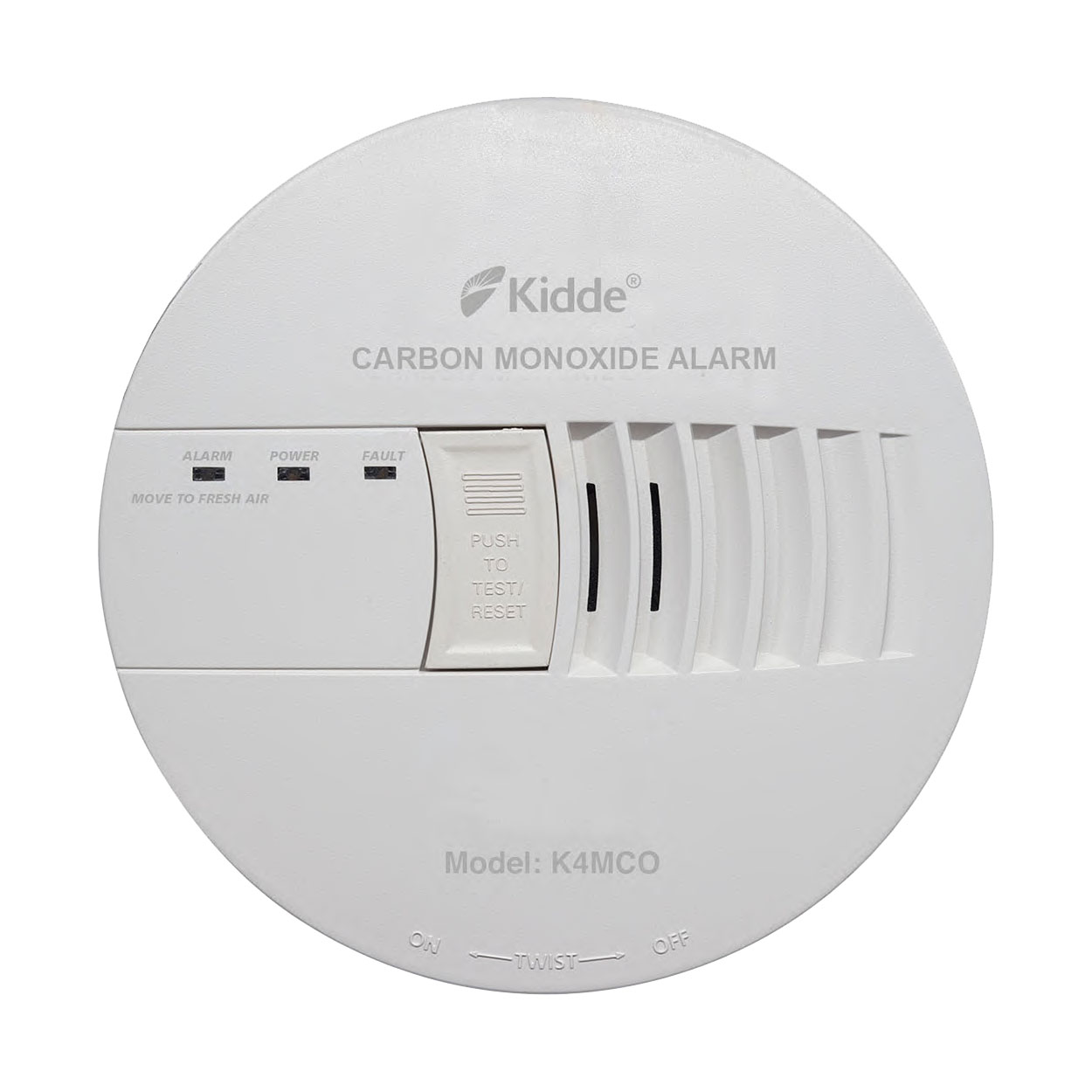

Interconnectable Carbon Monoxide Alarm
K4MCO

• Mains powered carbon monoxide alarm with sealed-in lithium battery

• Can be interconnected with up to 23 other Kidde mains alarms (of which 18 can be initiating alarms)

• Unique fast-fit system saving time on install

• Fast, push-fit connection

• Wireless capability

• Deep Base – allows easier wiring

• Interconnectable – with other Kidde and Firex mains smoke, heat and CO alarms on a single wiring network using ‘Smart Interconnect’ technology

• Monitors the air for the presence of carbon monoxide

• Tamper-resistant locking device – prevents unauthorised removal without the use of a tool

• End-of-life warning – after 7 years from initial power-up

• Test/Reset button – to allow regular testing of alarm function

• Rechargeable Lithium battery – provides operation in the event of a mains failure

• Model K4MCO

• Power Supply 230V mains-powered with rechargeable lithium back-up battery

• Temperature Range: 0ºC to +40ºC

• Humidity Range Up to 93% Relative Humidity (RH) non-condensing

• Storage and Transport -20ºC to +60ºC and 5–95% relative humidity (RH) non-condensing

• Alarm Dimensions 147 x 147 x 42mm

• Alarm Wight 350g

• Warranty 7 years

• Sensor Electrochemical CO

• Button Test Checks sensor, electronics and sounder

• Supply Voltage 230V AC, 50Hz

• Power Consumption Maximum 20mA per alarm

• Alarm Sounder Piezo-electric (T4 pattern sound - 4 pulses - space - 4 pulses)

• BS EN 50291-1:2018

• BSI Kitemark Certification

Optional Pattress PATCO Surface Pattress can be used if necessary
